Comparison of Switching Power Supply and ePower.
1. Ordinary switching power supply will cause over-voltage due to kinetic energy recovery, triggering protection shutdown.
2. Ordinary switching power supply will cause over-current due to momentary large load, triggering protection shutdown.
3. ePower power supply has a dedicated processing circuit inside, which will not trigger over-voltage protection due to regenerative braking, and will not trigger over-current shutdown due to momentary excessive load.

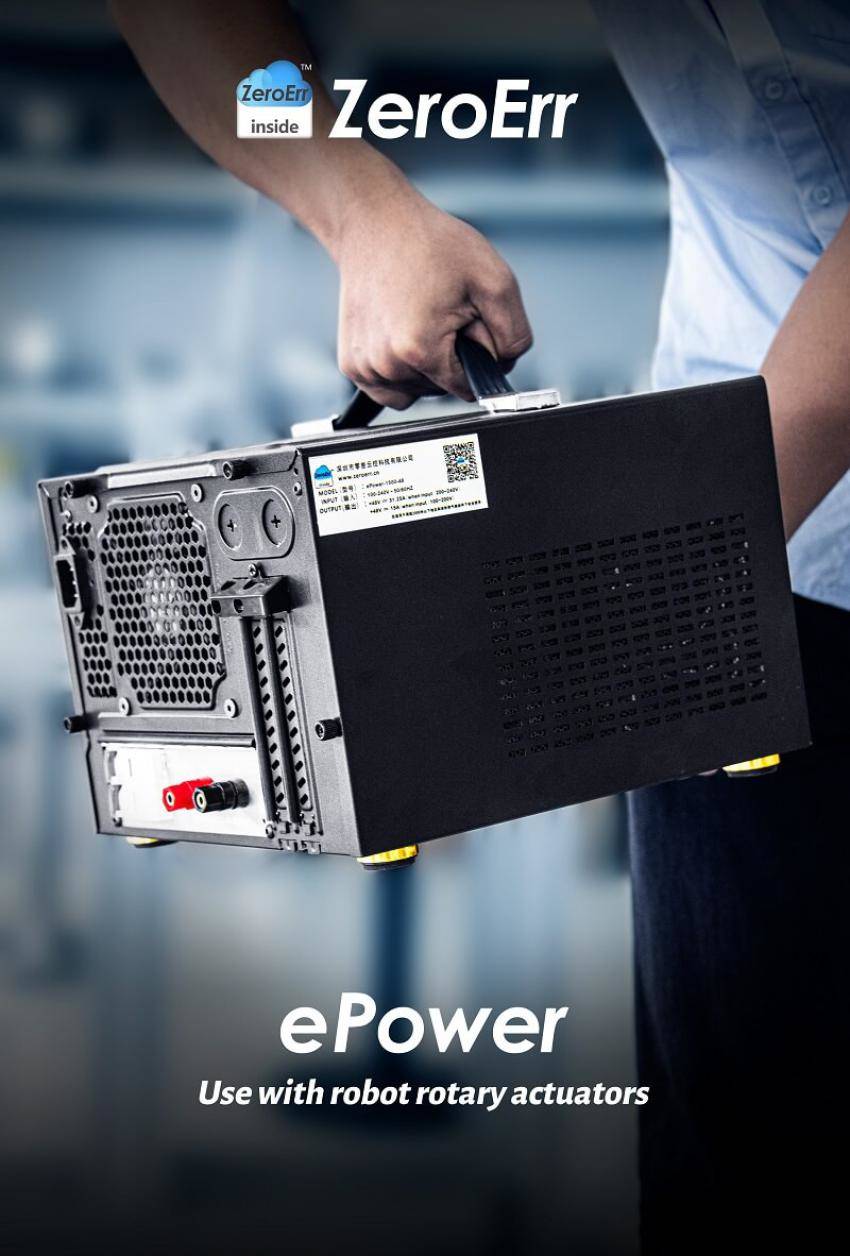

About ePower
ePower is a chassis power supply designed and developed to help users use ZeroErr actuators. It can convert AC voltage into actuator usable DC output, and currently covers power of 400W, 800W, 1500W etc.. It is suitable for occasions such as rotary actuators and robots that generate regenerative braking and the working current changes frequently.
Feature
The internal switching power supply of our ePower applies MeanWell ERPF-400-48 and have obtained the CE certification.
Features
Universal AC input/full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
High efficiency up to 91%
Protection type: short circuit/overload/over-voltage/over-temperature
Built-in cooling fan for heat dissipation

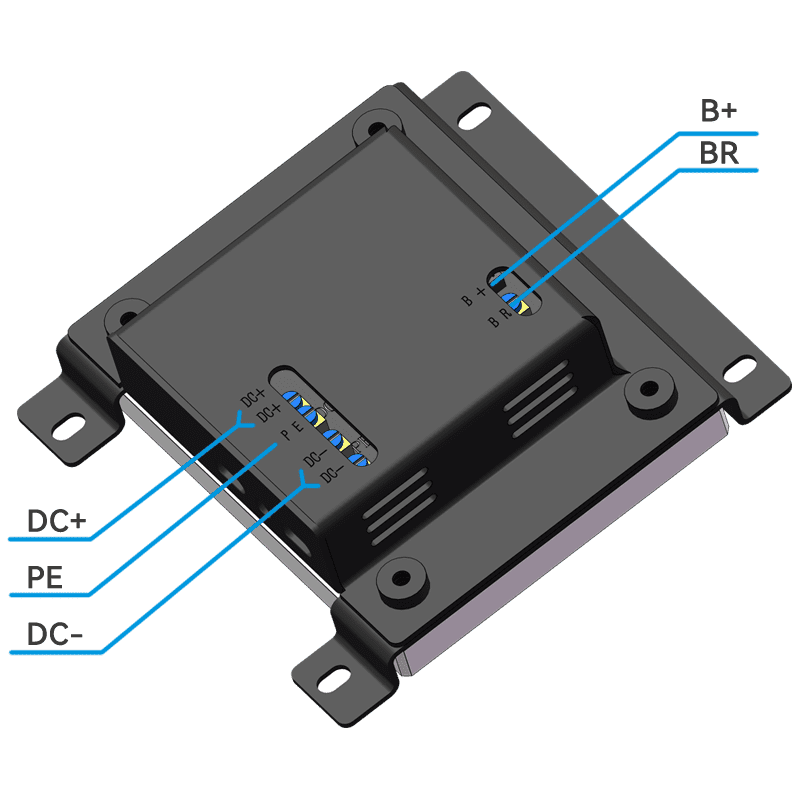

Built-in power brake prevents excessive voltage
Electrical parameters
Model |
ePower-400-48 |
ePower-800-48 |
ePower-1500-48 |
|---|---|---|---|
Input AC voltage |
100 ~ 240V | ||
Output DC voltage |
48V | ||
Output rated current |
8.3A |
16.7A |
31.25A |
Output Power |
400W |
800W |
1500W |
Brake turn-on voltage |
53V | ||
Brake turn-off voltage |
51V | ||
Operating temperature |
-20~60℃(Please refer to “Derating Curve”) | ||
Overload Protection Mode |
Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed | ||
Short circuit protection mode |
Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed | ||
Over-voltage protection threshold |
55.2 ~ 64.8V | ||
Over-voltage Protection Mode |
Turn off the output voltage, restart and recovery | ||
Over-temperature protection mode |
Turn off the output voltage, automatic recovery after the temperature drops | ||
weight |
4.7kg |
5.9kg |
8.1kg |
