Magnetic Encoders

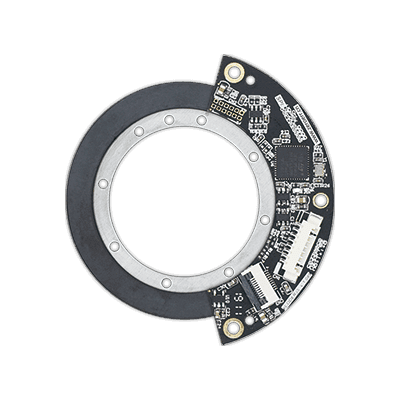

eCoder 35

 Features:

Low profile,non-contact

RS485 Asynchronous serial

Self-calibration option

No hysteresis

High speed operation



Benefits:

True absolute system

High repeatability

Built-in self-monitoring

Multiturn counter option

Extended temperature range

Description

Product Data

Model
eCoder 35
Reading type
Axial reading
Inner diameter
35mm
Outer diameter
55mm
Thickness
10.2mm
Resolution
20Bits
Repeatability
±5″
Accuracy
<0.05°
Maximum speed
6000RPM
Communication interface
Asynchronous serial RS485
Temperature
-40 ~ +70℃
